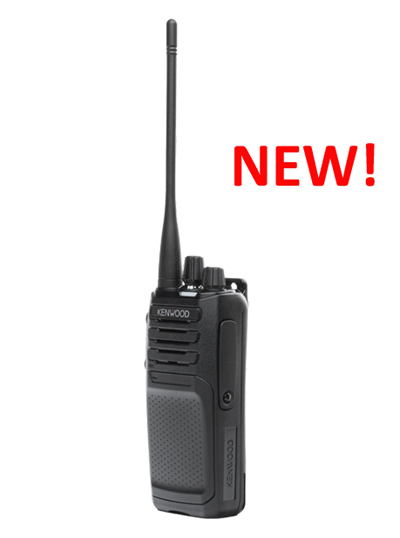

NX-1300DK4 (Plain)

Category:

Call 604-451-7977 or Toll Free 1-800-374-2281

Email – Sales@safelight.ca



GENERAL FEATURES

Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM analog protocols
Choose from direct & intuitive LCD with standard keypad or basic enclosures
Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
Large 7-Color LED indicator on the top panel
Selective Power-on LED
Selective Call Alert LED
Battery Level Indication
Multi-status function indication
RF output power 5W both on VHF/UHF
Mixed Zone – analog and digital
Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable digital processor
Audio Equalizer: Flat, High, Low
Auto Gain Control: On, High, Low, Off
Noise Suppressor
Microphone type settings
Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi, Normal Scan
VOX & PTT –triggered Semi- VOX, Voice-operated TX
Emergency Function: Customizable Emergency Profile
Lone Worker
Max / Min Volume setting & Volume control
Voice Announcement
Remote Stun / Kill / Check
Front Panel Programming Mode (for Keypad model)
Electronic Serial Number (ESN)
MIL-STD-810 C/D/E/F/G IP54 and IP55 Intrinsically safe option (Available later)
Digital – NXDN® Mode
FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
NXDN Conventional Operation
Site Roaming
Digital / Analog Mixed mode
Group / Individual Call
Status / Short data, Paging Call
Remote Stun / Kill, Monitor, Check & Control
Digital Bit Scrambler
Late Entry
Over-the-Air Alias (OAA)
Digital – DMR Mode
TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
DMR Tier II Conventional Operation
Site Roaming
DMR Auto Slot Select
Dual Slot Direct Mode
Digital / Analog Mixed mode
Call Interruption
Group / Individual Call
Status / Short data, Paging Call
Remote Stun / Kill, Monitor, Check & Control
Enhanced Encryption (ARC4)
Digital Bit Scrambler
Late Entry
Over-the-Air Alias (OAA)
Analog – FM
FM Conventional Operation
FleetSync: PTT ID, Stun/Revive, Talk back, Selcall
MDC1200: PTT ID, Radio Inhibit/Uninhibit, Radio check, Emergency
QT / DQT, DTMF, 2-tone
Built-in Programmable Voice Inversion Scrambler (per channel)
Built-in Compander (per channel)

NX-1300DK4
